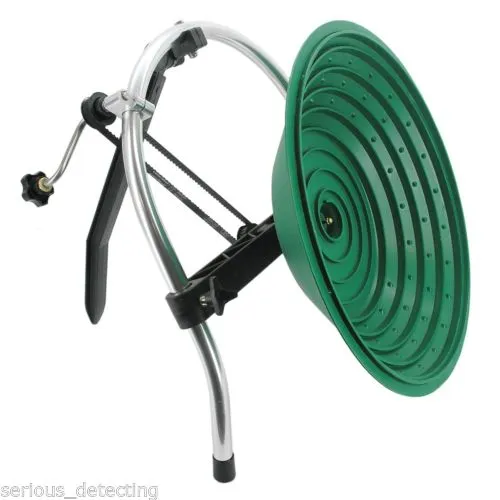

Our Manual Operation Spiral Gold Recovery System works great both wet and dry. The Gold Magic 10M can run up to 140lbs of material in 60 minutes. And weighing in at only 4 lbs. it can easily be carried with one hand. Shipping Weight: 8lbs

The Gold Magic Spiral Gold Recovery System will allow you to work more material faster and recover more gold than ever before! This machine will work dry to highly concentrate material, and it will work wet in a tub to separate black sand and gold. And it can work right down in a stream to process material so you take home clean gold.

• Recovers all sizes of gold -- from flour gold to nuggets!
• Prospect Dry
• Prospect Wet
• Fine Gold Recovery from Black Sand
• No pump is needed
• Lightweight and portable - weighs just 8 lbs.
• 17 inch diameter spiral pan with 69 agitation knobs
• Can process approx. 140 lbs (two 5-gallon buckets) of material per hour
• All components are designed for rugged outdoor use. The frame is made of marine-grade aluminum. The fasteners and pan shaft are made of marine-grade stainless steel. No lubrication of any part is needed. Only oil impregnated bronze bushings are used— not ball bearings because they can seize up if black sand gets into them.
• The patented removable gold concentration cup allows you to pour your gold directly from the pan into your vial.

How your Gold Magic Works

The 17-inch Gold Magic® pan is computer designed for maximum gold recovery. As the wheel turns and you deposit material into the wheel, some of that material will immediately move up the wheel into the concentration cup. As gold and other more dense material arrives at the concentration cup, it replaces less dense material in the cup so that the center cup is continually filling with the densest material in the pan. This process starts as soon as you introduce material into the pan and is complete within a matter of minutes. There are 69 agitator knobs, (1B), in the primary processing area of the Gold Magic pan. These agitator knobs move through the material in rapid succession causing it to mix and tumble, all designed to quickly get the gold into area (1-C). The larger, low density materials will be expelled from the pan while the heavier, smaller materials (black sand, gold, platinum, and gemstones) will be carried up the spiral riffle into the removable concentration cup.
