Product Details
＋
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on , or .

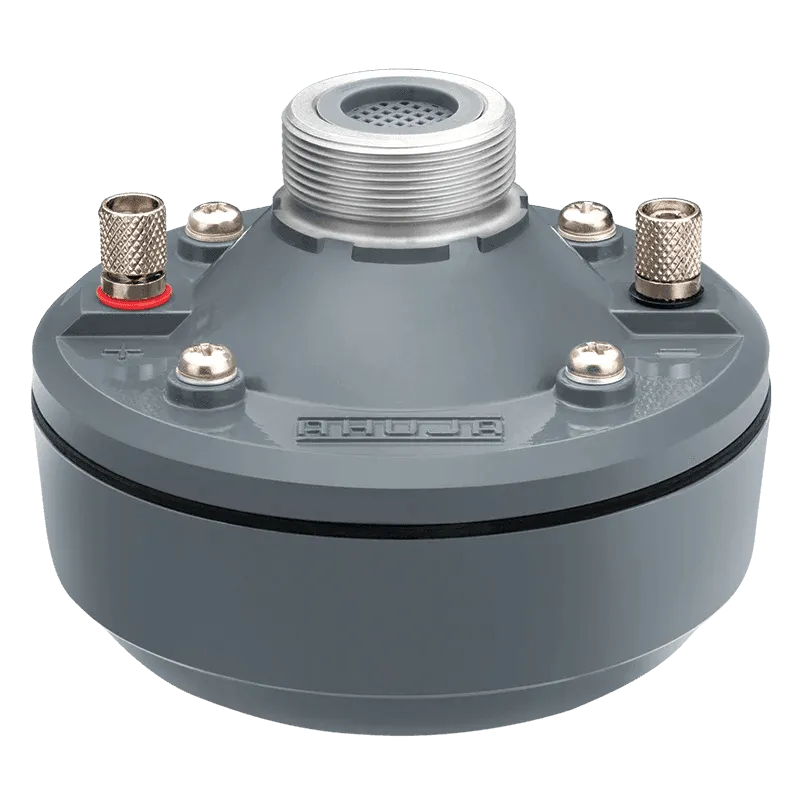

Are you looking for a driver unit that is weatherproof and ruggedly constructed, yet offers high SPL and crisp sound? Look no further than the Ahuja AU35 Driver Unit! This driver unit is designed for outdoor use, providing a degree of protection IP 66 when mounted on a reflex horn, and meets EN 60529. With its 35W RMS/53W Max input power, 16 Ω impedance, 160-7,000Hz frequency response, 112dB/1W/1m, 127dB/35W/1m SPL at 1kHz, -30°to 70°C temperature range, and 1.48 kg weight, this driver unit is sure to meet all your needs.FEATURES:
- Weatherproof and rugged construction.
- High SPL, crisp penetrating sound.
- Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
- Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
SPECIFICATIONS:
| Input Power | 35W RMS/53W Max. |
| Impedance | 16 Ω |
| Frequency Response | 160-7,000Hz |
| SPL at 1kHz | 112dB/1W/1m, 127dB/35W/1m |
| Temperature Range | -30°to 70°C |
| Throat Coupling | 1-3/8” - 18TPI, Throat Couple No.1 |
| Dimensions | ø113 x H89 mm |
| Weight | 1.48kg |
| Material | Die-cast Aluminium Acoustic Head (Flange) |
HOW IT WORKS:
The Ahuja AU35 Driver Unit is designed to be mounted on a reflex horn, providing a degree of protection IP 66 against foreign particles such as dust and jets of water. It is capable of producing high SPL and crisp sound with its 35W RMS/53W Max input power, 16 Ω impedance, 160-7,000Hz frequency response, and 112dB/1W/1m, 127dB/35W/1m SPL at 1kHz. The voice coils are precision-wound on an aluminium bobbin for efficient heat dissipation and the temperature range is -30°to 70°C.PRODUCT FAQ:
Q: What is the weight of the Ahuja AU35 Driver Unit?A: The Ahuja AU35 Driver Unit weighs 1.48kg.
Q: What is the degree of protection provided by the Ahuja AU35 Driver Unit?
A: When mounted on a reflex horn, the Ahuja AU35 Driver Unit provides a degree of protection IP 66 against foreign particles such as dust and jets of water.
